3. Load a Model

When loading the model in NaxTo, there are several options available:

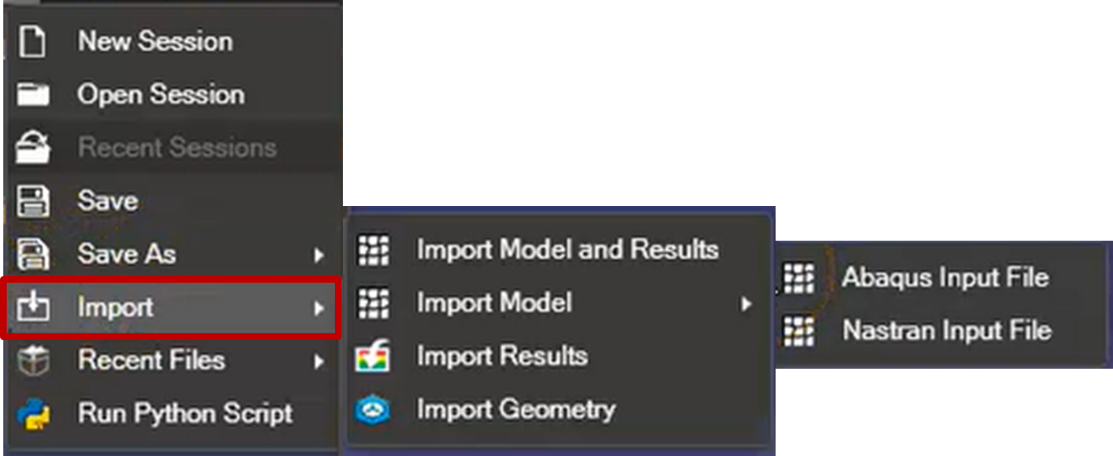

Import->

• Import Models and Results: Loads the model and results simultaneously using binary output files such as *.op2, *.xdb, *.hdf5, *.h3d, *.odb, *. rst (see Figure 1).

• Import Model: Allows only the model mesh to be imported. Available for Abaqus or Nastran formats.

• Import Results: This option imports the results for a previously loaded model in HDF5 format. For more information about this option, see Section 10.Specification of the HDF5 File Format

• Import Geometry: Allows importing only the model’s geometry.

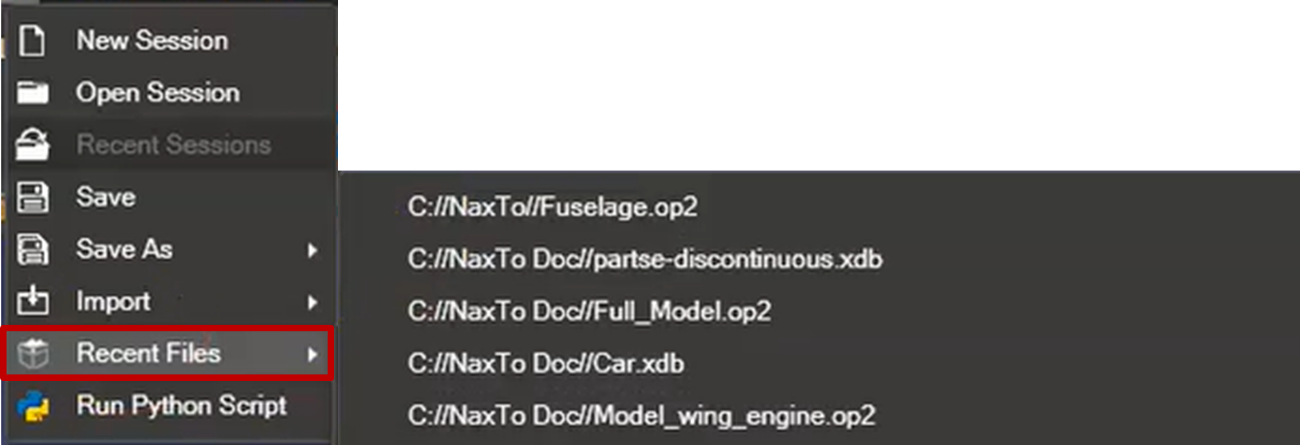

Import Recent Files->

This feature is particularly useful as it facilitates the import of the most recently used models, optimizing the process of loading and accessing regular projects.

This feature is particularly useful as it facilitates the import of the most recently used models, optimizing the process of loading and accessing regular projects.
